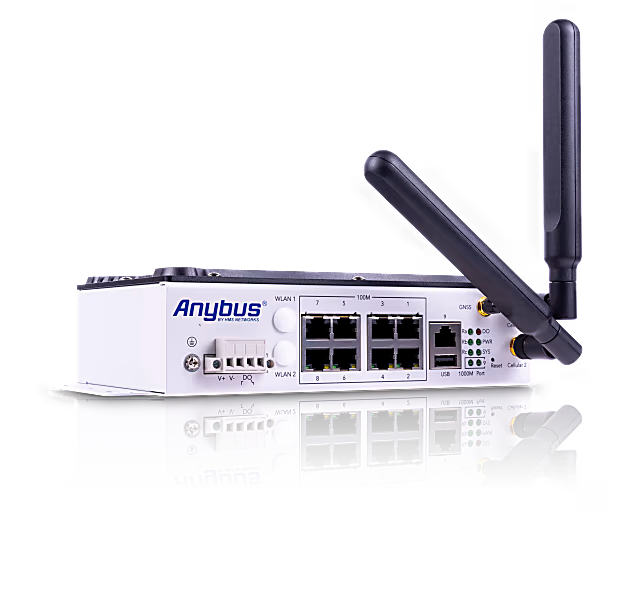

Kablosuz Yönlendirici LTE - Global
(0) Yorum - 0 Puan
Kategori
Stok Kodu
AWB5221
ÖZELLİKLER VE AVANTAJLARI
HIGH THROUGHPUT WIRELESS PERFORMANCE
- - LTE Cat.4 modem 2x2 MIMO, 150 Mbit/s downlink and 50 Mbit/s uplink
- - 4G/3G/2G tüm hücresel ağ uyumluluğu
ETHERNET YÖNLENDİRİCİ SVİÇ
- - 8 Hızlı Ethernet LAN portu
- - 1 Gigabit Ethernet WAN portu
- - IEEE 802.1p QoS/802.1Q VLAN öncelikli tagging
- - RIPv2
- - Trafik kontrol
KRİTİK UYGULAMALAR İÇİN GELİŞTİRİLMİŞ GÜVENLİK VE REDUNDANCY
- - Firewall for traffic classification, port yönlendirme
- - VRRP (Virtual Routing Redundancy Protocol).
- - GRE (Generic Routing Encapsulation RFC2784)
- - Supports NAT, DMZ for LAN protection
- - Supports IPsec, OpenVPN and L2TP for secure connection
SAĞLAM TASARIM
- - Effective heat dissipation design for operating in -40 to 75°C environments
- - Railway EMC: EN50121-4 compliance
- - IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
- - Vehicle: E-mark compliance
- - Radio: RED for CE Marking
- - Emission: FCC part 15 B Class A
YÖNETİM ÖZELLİKLERİ
- - Farklı konfigürasyon opsiyonları; WebGUI, CLI and SNMP
- - Diyagnostik araçlar, including LED, Ping/Traceroute, SNMP Trap, E-mail alarm ve Syslog
- - Harici yedekleme/geri yükleme, Firmware güncelleme
TEKNİK ÖZELLİKLER
Ethernet portları |
LAN: 8 x 100 Mbit/s RJ45, auto negotiation, auto MDI/MDI-X |
USB | 1 x USB type A |
Çalışma Sıcaklığı | -40oC-75oC, 5-95 % non-condensing |
Hücresel ağ standartları |
LTE cat.4 2x2 MIMO, 4G/3G/2G fall back |
Veri hızı |
LTE-FDD: DL: max. 150 Mbit/s, UL: max. 50 Mbit/s |
GNSS |
GPS |
Güç |
8-32 VDC (max. 4.8 W) |
Ağırlık | 1400 g |
Gövde | Çelik/Aluminyum |
Koruma sınıfı | IP31 |
Ölçüler | 200 x 126 x 51 mm (without DIN rail clip) |
Montaj | Panel veya DIN raya montaj (bracket included) |
Konfigürasyon | CGI WebGUI, SSH, Telnet, SNMP |
