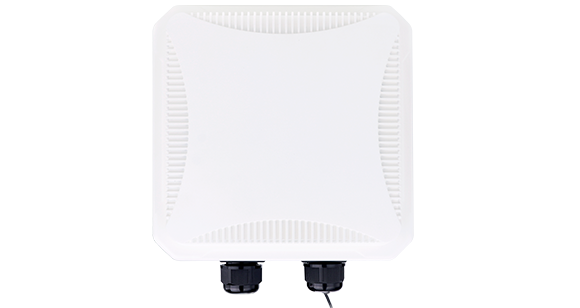

Hoditek H8890 5G Outdoor Router

Hoditek H8890 5G Outdoor Router, zorlu ortamlarda güvenilir bağlantı sağlamak üzere tasarlanmış, dayanıklı bir 5G dış ortam ünitesidir. 5G ve WiFi6 teknolojilerini destekleyen cihaz, IP66 koruma sınıfına sahip kasasıyla hem iç hem de dış mekanlarda gelişmiş ağ kapsamı sunar. Otomatik geçiş özellikli çift SIM desteği (isteğe bağlı eSIM seçeneğiyle birlikte), ağ esnekliği ve yedeklilik sağlar. PoE-in ve PoE-out özellikli Gigabit Ethernet portları, güç ve veriyi tek bir kabloda birleştirerek kurulumu kolaylaştırır. Cihaz ayrıca, SD-WAN ağ mimarisine sahip Hoditek bulut platformu Sandora üzerinden yönetilebilen ve her an her yerden uzaktan erişim imkanı sunar.

Hardware
CPU	Dual-core, 1.35 GHz, ARM Cortex A53
RAM	512MB
FLASH	32MB
Cellular Interface
Modem	1 x 5G NR SA/NSA
Number of antennas	4
Connector	SMA-K
SIM	2 x Mini SIM (2FF)(eSIM Optional)
Ethernet Interface
Number of ports	4 × 10/100/1000 Mbps, Gigabit Ethernet
Configuration	3x LAN + 1 x WAN/LAN
PoE output	POE+(802.3af/at) 30W output × 2, input×1
Wireless interface
Standards	(Optional)802.11b/g/n/ac/ax, AP or station mode
Frequency bands	2.4 GHz & 5GHz
Speed	2402Mbps on 5GHz, 576Mbps on 2.4GHz
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Connector	RP SMA-K
GNSS interface
Number of antennas	1 (only for GPS version)
Connector	SMA-K with 50 ohms impedance
Seiral interface
Type	1 x RS-232 + 1 x RS-485 serial port
Socket form	1 x 7-pin 3.5 mm female socket
Signal definition	RX,TX,GND (RS-232) , A+,B-,GND (RS-485)
Baudrate	RS-232 (300-115200bps) RS-485 (300-115200bps)
SD card	Built-in TF card slot
USB	USB2.0
Software
Auto fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network protocols	PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
Network	APN, VLAN, VXLAN, QoS
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/VXLAN/Wireguard
Attack Prevention
Ipsec Encryption	DES, 3DES, AES128, AES192, AES256
OpenVPN Encryption	BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, SEED-CBC
Industrial Protocols	Modbus, OPC UA, BACNet/IP, IEC101/104, IEC61850, etc
Remote Management	HTTP, Telnet, SSH, SMS SNMP V1/V2/V3, SNMP TRAP Hongdian Sandora Platform, SDLAN
Serial ports function	Transparent, Modbus RTU, etc
Power Supply and Consumption
Power Connector	2 pin socket
Voltage input	+9V~+48V DC
Power consumption	Idle: 325mA@12V DC Data transceiving: 708mA@12V DC
Others
Reset button	Yes
LED indicators	4 indicators for WiFi, SIG, NET, SYS
Hardware watchdog	Yes
Physical Characteristics
Ingress protection	IP66
Housing & Weight	Metal, 1860g
Dimension	221×221×82(mm)
Installations	Desktop, pole mounting, wall mounting and surface mounting
Operating temperature	-40 ~ +75℃
Storage temperature	-40 ~ +85 °C
Relative humidity	5 ~ 95% RH
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3
Certifications (*In progress)	CE*, FCC*
