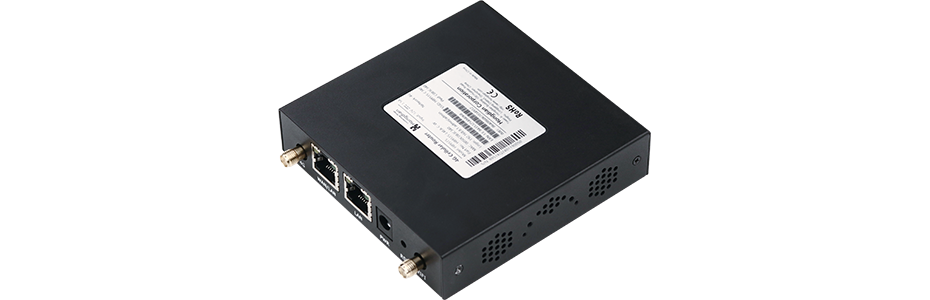

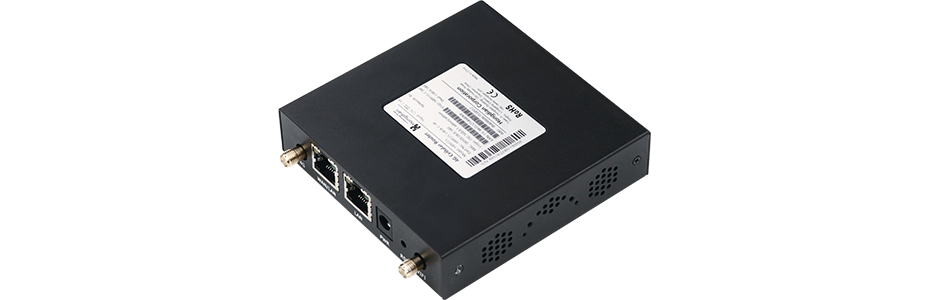

Hoditek H8951 LTE Cat-1 VPN Router
(0)
Stok Kodu
:
H8951
Hoditek H8951 VPN router, Wi-Fi, Ethernet WAN ve farklı ağ topolojileri oluşturmanıza yardımcı olacak şekilde yapılandırılabilir. Plus Links otomatik failover, VPN veri şifreleme ve çoklu VPN tünel yedekleme mekanizması, müşterilere güvenli ve son derece güvenilir bir ağ çözümü sunar.
Ürün Bilgisi
Hoditek H8951 LTE Cat-1 VPN Router, Wi-Fi, Ethernet WAN ve farklı ağ topolojileri oluşturmanıza yardımcı olacak şekilde yapılandırılabilir. Plus Links otomatik failover, VPN veri şifreleme ve çoklu VPN tünel yedekleme mekanizması, müşterilere güvenli ve son derece güvenilir bir ağ çözümü sunar.
Teknik Özellikler
| Hardware | |
| CPU | MIPS 24Kc @580 MHz |
| RAM | 128MB |
| FLASH | 16MB |
| Cellular Interface | |
| Modem | 1 x LTE CAT1 |
| Number of antennas | 1 |
| Connector | SMA-K |
| SIM | 1 x Mini SIM (2FF) |
| Ethernet Interface | |
| Number of ports | 2 x 10/100 Mbps, Ethernet |
| Configuration | 2 x LAN or 1 x LAN + 1 x WAN |
| PoE output | N/A |
| Wireless interface | |
| Standards | 802.11b/g/n, AP or station mode |
| Frequency bands | 2.4 GHz |
| Speed | 150Mbps |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Antennas | 1 |
| Connector | SMA-K |
| GNSS interface | |
| Number of antennas | N/A |
| Connector | |
| Dead Reckoning | |
| Seiral interfa | |
| Software | |
| Auto fail-over | Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode) |
| Network protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| Network | APN, VPDN, VLAN, QoS |
| Routing | Static Routing, Policy routing, RIP, OSPF and BGP, etc. |
| Firewall | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List |
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard |
| Ipsec Encryption | DES, 3DES, AES128, AES192, AES256 |
| OpenVPN Encryption | BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, SEED-CBC |
| Remote Management | HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Sandora Cloud Platform |
| Power Supply and Consumption | |
| Power Connector | DC socket |
| Voltage input | +5V~+36V DC |
| Power consumption | Idle: 100mA@12V DC Data transceiving: 350mA@12V DC |
| Others | |
| Reset button | Yes |
| LED indicators | 4 x indicators for WiFi, RF, NET, SYS |
| Hardware watchdog | Yes |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 300g |
| Dimension | 99.7×98.8×23.4(mm) |
| Installations | Desktop, wall mounting，din rail mounting |
| Operating temperature | -30 ~ +75℃ |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 0~95%(no condensation) |
| EMC | |
| ESD | EN61000-4-2, level3 |
| RS | EN 61000-4-3, level3 |
| EFT | EN 61000-4-4, level3 |
| CS | EN 61000-4-6, level3 |
| Certifications |
CE, FCC, AT&T, Verizon, T-mobile |
