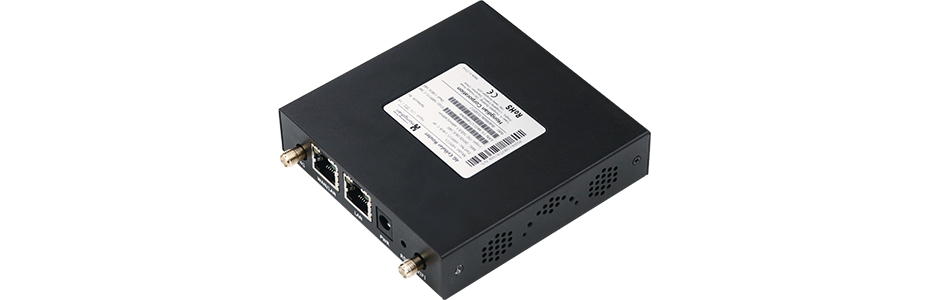

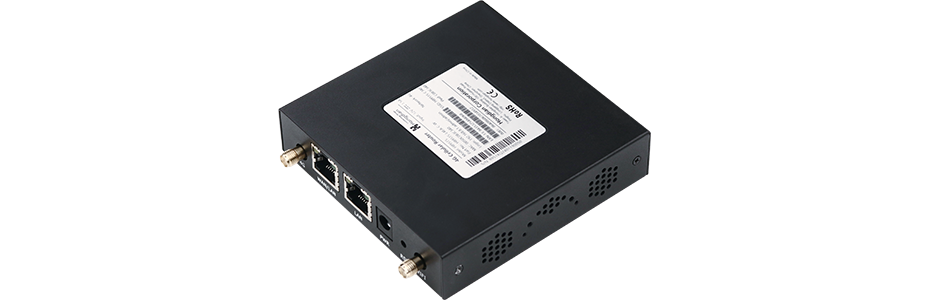

Hoditek H8959 LTE VPN Router
(0)
Stok Kodu
:
H8959
Hoditek H8959 VPN yönlendiriciler, Wi-Fi, Ethernet WAN ve farklı ağ topolojileri oluşturmanıza yardımcı olacak şekilde yapılandırılabilir. Plus Links otomatik failover, VPN veri şifreleme ve çoklu VPN tünel yedekleme mekanizması, müşterilere güvenli ve son derece güvenilir bir ağ çözümü sunar.
Ürün Bilgisi
Hoditek H8959 LTE VPN Router, Wi-Fi, Ethernet WAN ve farklı ağ topolojileri oluşturmanıza yardımcı olacak şekilde yapılandırılabilir. Plus Links otomatik failover, VPN veri şifreleme ve çoklu VPN tünel yedekleme mekanizması, müşterilere güvenli ve son derece güvenilir bir ağ çözümü sunar.
Teknik Özellikler
| Hardware | |
| CPU | MIPS 24Kc @580 MHz |
| RAM | 128MB |
| FLASH | 16MB |
| Cellular Interface | |
| Modem | 1 x LTE CAT1/CAT4 |
| Number of antennas | 2 |
| Connector | SMA-K |
| SIM | 1 x Mini SIM (2FF) |
| Ethernet Interface | |
| Number of ports | 2 x 10/100 Mbps, Ethernet |
| Configuration | 1×WAN/LAN +1×LAN |
| Wireless interface | |
| Standards | 802.11b/g/n, AP or station mode |
| Frequency bands | 2.4 GHz |
| Speed | 150Mbps |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Antennas | 1 |
| Connector | RP SMA-K |
| Software | |
| Auto fail-over | Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode) |
| Network protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| Network | APN, VPDN, VLAN, QoS |
| Routing | Static Routing, Policy routing, RIP, OSPF and BGP, etc. |
| Firewall | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List |
|
Attack Prevention
|
DDoS prevention, Anti port scanning
|
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard |
| IPsec Encryption | DES, 3DES, AES128, AES192, AES256 |
| OpenVPN Encryption | BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, SEED-CBC |
| Remote Management | HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Sandora Cloud Platform, SDLAN |
| Serial ports function | N/A |
| Power Supply and Consumption | |
| Power Connector | DC Jack |
| Voltage input | +9V~+12V DC |
| Power consumption | Idle: 100mA@12V DC Data transmission: 350mA@12V DC |
| Others | |
| Reset button | Yes |
| LED indicators | 8 x indicators for Modem, Power, WLAN, Ethernet and Signals |
| Hardware watchdog | Yes |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 300g |
| Dimensions (W×D×H) | 98.8 × 102.8 × 23.4(mm) |
| Installation | Desktop, wall mounting |
| Operating temperature | -30 ~ +75℃ |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 0~95%(no condensation) |
| EMC | |
| ESD | EN61000-4-2, level3 |
| RS | EN 61000-4-3, level3 |
| EFT | EN 61000-4-4, level3 |
| CS | EN 61000-4-6, level3 |
| Certifications |
CE, FCC,Verizon,Sprint,PTCRB,IC,JATE+MIC,VCCI,RCM |
