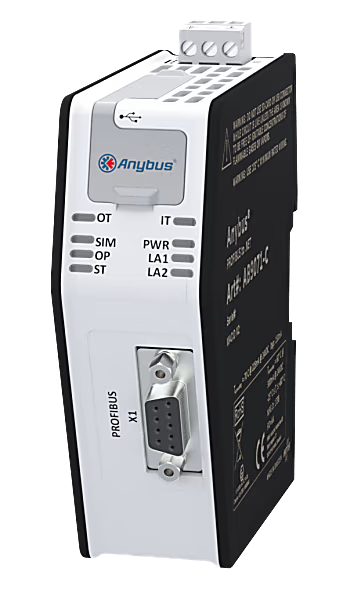

PROFIBUS - .NET gateway
(0)
Stok Kodu
:
AB9071
Ürün Bilgisi
| Dimensions (L•W•H) |
110 x 35 x 101 mm or 4,33 x 1,38 x 3,98" | |
| Weight | 160g or 0,35 lbs | |
| Operating temperature | -25 to +70 °C or -13 to +158 °F | |
| Storage temperature |
-40 to +85 °C or -40 to +185 °F | |
| Power supply | 24 VDC |
|
| Current consumption |
Typical 150mA |
|
| USB port | For firmware upgrades | |
| SD memory card slot | For backup, configuration and easy replacement | |
| PC connector | 1x RJ45 | |
| Fieldbus/Ethernet connector | (See the secondary network interface details above) | |
| Galvanic isolation |
On both BUS/Ethernet side |
|
| Mechanical rating | IP20, NEMA rating 1 | |
| Mounting | DIN-rail (EN 50022 standard) or Wall Mount (optional) | |
| Certifications | CE, CULUS, ATEX/Haz.Loc, RoHS |
